A quill injector is an essential tool that revolutionizes fluid delivery systems. It ensures unmatched precision in injecting liquids. This precision is crucial in industries like pharmaceuticals, oil and gas, and food processing. Here, even minor inaccuracies can lead to major issues. Quill injectors solve these challenges by delivering exact volumes of fluid. They do so at controlled rates directly into a process stream. This method not only enhances product quality but also increases operational efficiency. Additionally, it helps maintain consistency across batches. As industries strive for higher standards and tighter regulations, the role of quill injectors becomes even more vital. They provide a reliable solution that meets strict requirements. Furthermore, quill injectors help reduce waste and environmental impact. They ensure that every drop of fluid serves its purpose. Therefore, understanding and implementing quill injectors can significantly improve production processes. They are key to achieving precision in fluid delivery.
Модель выбора

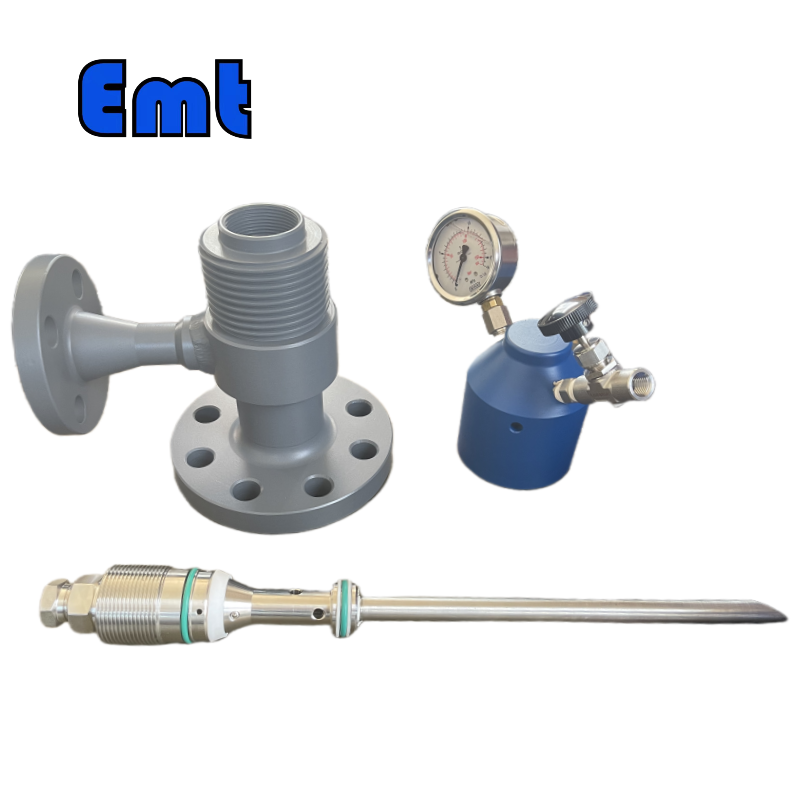

Имя | Injection quill assembly | |
| Материал | Нержавеющая сталь 304, Нержавеющая сталь 316, DSS F51, Углеродистая сталь A105N, а также Инконель 625 | |
| Рабочая температура | -20±120 | |
| Особенность | Во-первых, простота в эксплуатации | |
| Во-вторых, высокая точность, долгий срок службы | ||
| Наконец, высокая эффективность, низкая стоимость | ||
| Уплата | ТТ/ЛК | |
| Преимущество | Во-первых, они легкие и гибкие. | |
| Во-вторых, отличная эффективность впрыска. | ||
| Наконец, точное отслеживание местоположения. |
| Модель | ||||||||||||||||||||||||||||
СИ | Игла для инжектора химикатов | |||||||||||||||||||||||||||
| -Код | Затычка | |||||||||||||||||||||||||||
| Пх | Тип | Материал | Запечатывание Материал | |||||||||||||||||||||||||
| 0 | Нет запроса | 0 | КС | 0 | Нет запроса | |||||||||||||||||||||||
| 1 | Полый Корпус вилки | 1 | 316SS | 3 | СХД | 1 | Уплотнительное кольцо из витона / первичная набивка из ПТФЭ | |||||||||||||||||||||
| 2 | Прочный корпус вилки | 2 | 316ЛСС | 4 | ИНКОНЕЛЬ | 2 | HNBR | |||||||||||||||||||||
| –Код | Инжекторная гайка | |||||||||||||||||||||||||||
| Нхх | Размер соединения | Материал | ||||||||||||||||||||||||||
| 0 | т.е. нет запроса | 0 | i.e. CS | |||||||||||||||||||||||||
| 1 | т.е. 1/4" | 1 | т.е. 316SS | 3 | т.е. DSS | |||||||||||||||||||||||
| 2 | т.е. 1/2" | 2 | т.е. 316LSS | 4 | т.е. ИНКОНЕЛЬ | |||||||||||||||||||||||
| –Код | Инъекция Тюбик | |||||||||||||||||||||||||||
| Схх-Лк" | Размер соединения | Материал | Сопло | Размер линии (x") | ||||||||||||||||||||||||
| 0 | Нет запроса | 0 | КС | 0 | т.е. нет запроса | Наиболее эффективное положение для впрыска обычно находится в центре трубы | ||||||||||||||||||||||
| 1 | т.е. 1/4" | 1 | т.е. 316SS | 1 | т.е. открытый | |||||||||||||||||||||||
| 2 | т.е. 1/2" | 2 | т.е. 316LSS | 2 | т.е. перо | |||||||||||||||||||||||
| 3 | т.е. DSS | 3 | i.e. Cap & Core | |||||||||||||||||||||||||
| 4 | т.е. ИНКОНЕЛЬ | |||||||||||||||||||||||||||
| –Код | Nipple and Valve（or end фланец) тройника | |||||||||||||||||||||||||||
| Тхх | Размер соединения | Материал | ||||||||||||||||||||||||||
| 0 | т.е. нет запроса | 0 | i.e. CS | |||||||||||||||||||||||||
| 1 | т.е. соска 1/4" | a | т.е. 1/4"ниппель и клапан | 1 | т.е. 316SS | |||||||||||||||||||||||
| 2 | т.е. 1/2"Ниппель | b | т.е. 1/2"ниппель и клапан | 2 | т.е. 316LSS | |||||||||||||||||||||||
| 3 | т.е. 3/4"Ниппель | c | т.е. ниппель и клапан 3/4" | 3 | т.е. Д СС | |||||||||||||||||||||||
| 4 | т.е. 1"Сосок | d | т.е. 1"Ниппель и клапан | 4 | т.е. ИНКОНЕЛЬ | |||||||||||||||||||||||
| 5 | т.е. фланец 1/4 дюйма | e | т.е. фланец с концом ниппеля 1/4 дюйма | |||||||||||||||||||||||||
| 6 | т.е. фланец 1/2 дюйма | f | т.е. фланец с концом ниппеля 1/2" | |||||||||||||||||||||||||
| 7 | т.е. фланец 3/4"Фланец | g | т.е. фланец с ниппельным концом 3/4 дюйма | |||||||||||||||||||||||||
| 8 | т.е. фланец 1"Фланец | h | т.е. фланец с концом ниппеля 1 дюйм | |||||||||||||||||||||||||
| Например, SI-P221-N12-S122-L4"-T22 SI：e.g. Sampling & Injection Assembly， P221: например, прочный корпус заглушки в уплотнительном кольце из витона 316LSS и первичной упаковке из ПТФЭ, N12：e.g. injection Nut Connection Size is 1/4″and and material is316LSS， S122: например, инъекция Тюбик Размер соединения составляет 1/4" и Материал 316LSS. The type of nozzle is quills L4":Для трубы 4". Т22: Сосок Размер подключения тройника составляет 1/2 дюйма. Материал ниппеля 316ЛСС | ||||||||||||||||||||||||||||
What is a Quill Injector?
A quill injector is a specialized device that injects fluids directly into a pressurized system or pipeline. It ensures high precision and control in the delivery of liquids. This tool is crucial in applications where precise dosing and distribution are vital. For instance, in chemical processing, accurate fluid injection can impact the quality of the final product. Moreover, quill injectors allow for the introduction of fluids without disrupting system pressure. This capability sets them apart from traditional injection methods.
Traditional injectors often require system depressurization before fluid introduction. This process can be time-consuming and may lead to inefficiencies. In contrast, quill injectors operate under full system pressure. They maintain continuous operation without the need for shutdowns or interruptions. This method not only saves time but also enhances productivity. Additionally, quill injectors minimize the risk of contamination. They ensure that external substances do not enter the system during the injection process.
Components of a Quill Injector
Understanding the components of a quill injector is essential for appreciating its functionality and efficiency. The main parts include the body, nozzle, and check valve. Each plays a pivotal role in the injector’s operation.
- Body: The body of the quill injector houses the internal components. It is typically made from robust materials like stainless steel. This ensures durability and resistance to harsh chemicals.
- Сопло: The nozzle is critical for controlling the flow rate and spray pattern of the injected fluid. It can be adjustable to suit specific application needs, allowing for precise control over the injection process.
- Check Valve: The check valve prevents the backflow of the process fluid into the injection system. This component is crucial for maintaining the integrity and purity of both the injected and processed fluids.
Diagrams of these components help illustrate their design and function. They provide a visual understanding of how each part contributes to the overall effectiveness of the quill injector.
Types of Quill Injectors
Quill injectors come in various designs, each tailored for specific applications. Understanding the different types and their advantages and disadvantages is vital for selecting the right injector.
- High-pressure Quill Injectors: These are ideal for systems where high-pressure fluid delivery is necessary. They can withstand extreme pressures, making them suitable for high-stress environments. However, they tend to be more expensive and require robust maintenance routines.
- Low-volume Quill Injectors: These injectors are designed for precise delivery of small volumes of fluid. They offer exceptional accuracy, which is crucial in applications like pharmaceuticals. On the downside, they may not be suitable for large-scale industrial applications.
- Adjustable Quill Injectors: These injectors allow for adjustments in the flow rate and pressure, providing flexibility across various applications. While they offer versatility, they may require more sophisticated control systems.
Each type of quill injector has its pros and cons, depending on the specific requirements of the application. High-pressure injectors are robust but costly, low-volume injectors are precise but limited in scale, and adjustable injectors are versatile but complex. Choosing the right type involves weighing these factors against the needs of the process.
