كوبونات وتحقيقات التآكل
اسم |
قسيمة التآكل |
|
| مادة | Stainless Steel 304、Stainless Steel 316、DSS F51、Carbon Steel A105N、and then Inconel 625 | |
| درجة حرارة التشغيل | -20±120 | |
| ميزة | Firstly, Easy to Operating | |
| Secondly, High Accuracy Long Life | ||
| At last, High Efficiency, Low cost | ||
| قسط | ترينيداد وتوباغو/LC | |
| ميزة | أولا ، فهي خفيفة الوزن ومرنة. | |
| Secondly, Nice Injection efficiency. | ||
| At last, Accurate location tracking. |
| نموذج | |||||||||||||
نسخة |
كوبونات التآكل |
||||||||||||
| -رمز | تجميع الجسم المكونات | ||||||||||||
| بكسكسكس | يكتب | مادة | ختم مادة | ||||||||||
| 0 | أي لا يوجد طلب | 0 | i.e. CS | 0 | أي لا يوجد طلب | ||||||||
| 1 | i.e. Hollow جسم التوصيل | 1 | أي 316SS | 1 | i.e. Viton O-Ring / PTFE Primary Packing | ||||||||
| 2 | i.e. Solid Plug Body | 2 | أي 316LSS | 2 | i.e. HNBR | ||||||||
| 3 | i.e. DUPLEX SS | ||||||||||||
| 4 | أي إنكونيل | ||||||||||||
| نوع حامل الكوبون | |||||||||||||
| ريال سعودى | i.e. Fixed حامل الكوبون لتجميع مستطيلة كوبون | ||||||||||||
| AR | i.e. Adjustable حامل الكوبون لتجميع مستطيلة كوبون | ||||||||||||
| إل آر | i.e. Ladder Coupon Holder for assembling rectangular coupon | ||||||||||||
| SC | i.e. Fixed حامل الكوبون لتجميع التعميم كوبون | ||||||||||||
| تكييف | i.e. Adjustable حامل الكوبون لتجميع التعميم كوبون | ||||||||||||
| -حجم الأنبوب | |||||||||||||
| س | i.e. Pipe Size in inch | ||||||||||||
| – كوبون حجم | |||||||||||||
| أ × ب × ج | كوبون الحجم بالبوصة أو الملليمتر | ||||||||||||
| – مادة القسيمة | |||||||||||||
| س | i.e. Grade | ||||||||||||
| -تشطيب كوبون | |||||||||||||
| 0 | i.e. Mill | ||||||||||||
| 1 | i.e. Glass Bead | ||||||||||||
| – حشية العزل | |||||||||||||
| 0 | i.e. No Gasket | ||||||||||||
| 1 | i.e. Nylon Gasket | ||||||||||||
| 2 | i.e. FTFE Gasket | ||||||||||||
| For example, CC-P221-SR-6″-3″×1/2″×1/8″-MS1018-0-2CC: i.e. Corrosion Coupons
P221: i.e. Solid Plug Body in 316LSS Viton O-Ring and PTFE Primary Packing SR-6″: i.e. Fixed Coupon Holder for assembling rectangular coupons and for 6″pipe 3″×1/2″×1/8″: i.e. كوبون حجم MS1018: i.e. Coupon Material 0: i.e. Finishing of الكوبون هو مطحنة 2: i.e. The material of Isolation Gasket is PTFE |
|||||||||||||
| نموذج | ||||||
طب الطوارئ |
جمعية قسيمة التآكل |
|||||
| - مادة جسم تركيب الوصول | ||||||
| 0 | i.e. CS | |||||
| 1 | أي 316SS | |||||
| 2 | أي 316LSS | |||||
| 3 | i.e. DUPLEX SS | |||||
| نوع جسم تركيب الوصول | ||||||
| ب | i.e. 2″Welded（suffix “pressure rating” can be added to B） | |||||
| F | i.e. 2″ANSI Flange（suffix “pressure rating & sealing type” can be added to F） | |||||
| -Tee Size-pressure rating & sealing type if the flanged end | ||||||
| 0 | i.e. No Tee | |||||
| 1 | i.e. 1/4″NPT(F)Tee | |||||
| 2 | i.e. 1/2″NPT(F)Tee | |||||
| 3 | i.e. 3/4″NPT(F)Tee | |||||
| 4 | i.e. 1″NPT(F)Tee | |||||
| 5 | i.e. Hole for 1/4″SWN Flange | |||||
| 6 | i.e. Hole for 1/2″SWN Flange | |||||
| 7 | i.e. Hole for 3/4″SWN Flange | |||||
| 8 | i.e. Hole for 1″SWN Flange | |||||
| -نوع الغطاء الواقي / المادة | ||||||
| 0 | لا يوجد غطاء واقي | مادة | ||||
| 1 | i.e. Without hole | CS أو 0 | ||||
| 2 | i.e. With hole | SS أو 1 | ||||
| 3 | i.e. Bleed Valve | DSS أو 3 | ||||
| 4 | i.e. Bleed Valve, & Pressure Gauge | |||||
| For example, EMT-CIPA-0F600#RF-2-1/CS shows 2″ANSI 600#RF Flange Access Fitting Body in CS. 1/2″NPT(F)Tee. Protective Cover in CS without hole0F600#RF: i.e. 0F_ Access Fitting Body is also Flanged in CS. 600#RF _Size is 2″ANSI 600#RF.
2: i.e. Tee size is 1/2NPT(F) 1: i.e. Protective cover type is without hole CS: i.e. Protective cove material in CS |
||||||

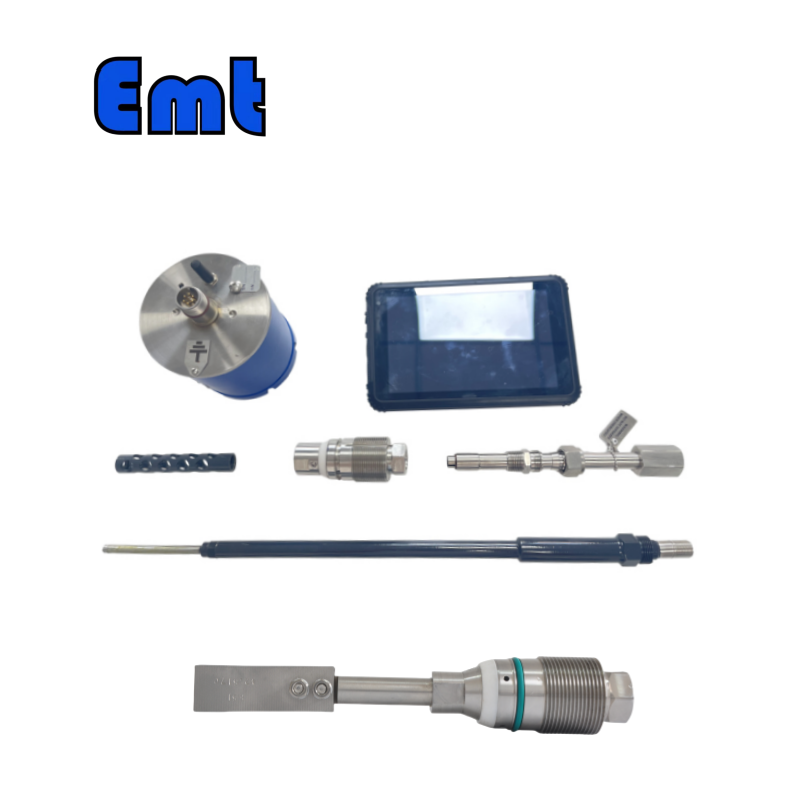

1. EMT Corrosion Probes
EMT Corrosion Probes are cutting-edge devices specifically designed to monitor and measure corrosion rates within various industrial environments. Utilizing the Electrical Resistance (ER) method, these probes provide precise, continuous monitoring by detecting changes in resistance values of their sensing components. This method allows for the timely assessment of metal loss and thus the corrosion rate, making it an invaluable tool for maintaining the integrity and safety of equipment pipelines.
2. Key Features of EMT Corrosion Probes
1. Versatility Across Environments:
- The ER method employed by EMT Corrosion Probes is adaptable to virtually all environments, unrestricted by process characteristics. This versatility ensures that the probes can be effectively used across a wide range of industrial applications.
2. Variety of Sensing Elements:
- EMT offers various forms of sensitive elements in their probes, including but not limited to cylindrical types, sheet types, loop types, tubular types, loop-tubular types, and flat types. This diversity allows for flexible application specific to the monitoring needs and environments of different industries.
3. High-Quality Materials:
- The main body of the probes is made from robust 316L stainless steel, with options for F51 duplex stainless steel. Sensing elements can be customized in material to suit specific environmental conditions, enhancing the probe’s effectiveness and durability.
4. Advanced Technical Specifications:
- Temperature and Pressure Tolerance: EMT Corrosion Probes operate effectively within a temperature range of -20 to 200°C and can withstand pressures up to 26MPa.
- Sealing Materials: The probes utilize high-quality Teflon and fluororubber for sealing, ensuring reliability under various operational conditions.
5. Flexible Installation Options:
- The probes can be installed via welding or flanged connections, depending on site requirements. This flexibility facilitates easy integration into existing systems.
- Protective Measures: Each probe comes with an installation protective cover to safeguard the integrity of the device under harsh conditions.
3. Applications of EMT Corrosion Probes
EMT Corrosion Probes are tailored for a broad spectrum of industries, including oil and gas, chemical processing, and water treatment. They are particularly effective in environments where continual monitoring of corrosion is critical to equipment safety and operational continuity. By providing real-time data on equipment corrosion status, these probes help prevent abnormal corrosion situations and avoid potential safety hazards caused by equipment degradation.
